Foil-wound, fully tested units up to 3500 kVA / 33 kV class for utilities, EPC contractors, renewables and heavy industry worldwide.
Synergy Transformers Pvt. Ltd. has been designing, winding, tank-fabricating and testing transformers in Rajkot, Gujarat since 2004. Everything that defines transformer life — core cutting, foil and wire winding, core-coil assembly, tank fabrication, painting, oil filtration and final routine testing — happens inside our own 103,500+ sq. ft. plant, under one quality plan.
Our 70-strong engineering and production team works to customer-approved GA drawings, records every routine test result, and issues complete dossiers: test certificates, guaranteed technical particulars, name-plate drawings and O&M manuals. That is how utilities, EPC contractors, steel plants and solar developers audit us before the first unit ships.
Three engineering decisions that measurably change losses, temperature rise and service life in the field.

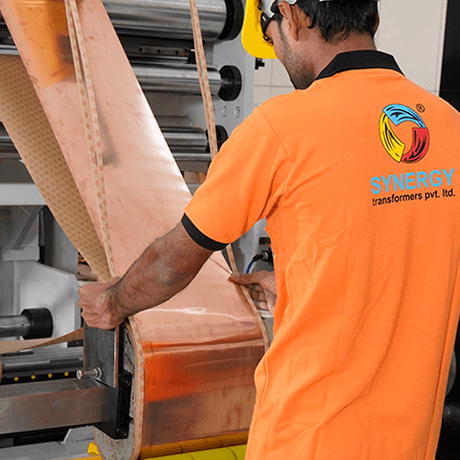

Continuous aluminium/copper foil removes transposition joints, spreads axial forces evenly across the coil and lowers hot-spot gradients. The result is higher short-circuit withstand, a more compact footprint and better heat dissipation over decades of loading.
We engineer to IS 1180 Level 1 and Level 2 loss limits, so no-load and load losses are guaranteed on the name plate. Pollution-control compliance, controlled oil handling and transparent internal communication are audited as part of the same quality system.
BIS-approved distribution transformer designs, in-house routine testing (ratio, vector group, winding resistance, insulation resistance, no-load and load loss) plus batch traceability of CRGO, insulation and oil for every serial number we dispatch.
Six proven product families — each customised to your voltage class, vector group, tap range, cooling method and site conditions.

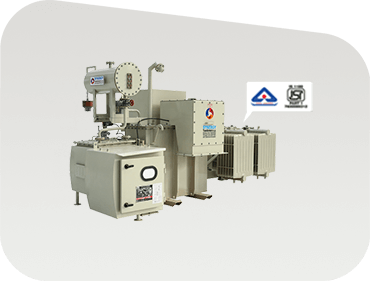

The final voltage transformation in the network. Hermetically sealed or conservator type, foil-wound, built to BIS 1180 Level 1/2, IS 2026 and IEC 60076 loss limits for rural and urban feeders.

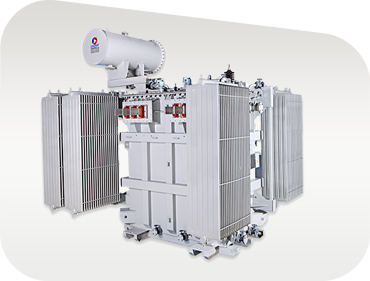

Step-up units that take inverter LV output to grid voltage. Designed for harmonic loading, K-factor duty, multi-winding configurations and the daily thermal cycling typical of renewable plants.

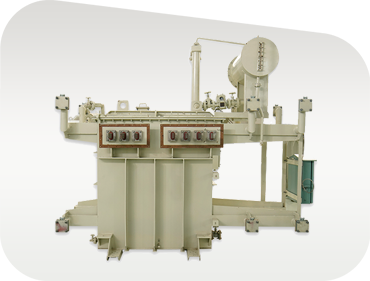

Engineered for induction melting and induction heating of ferrous and non-ferrous metals. High-current secondary bus, heavy-duty clamping and reinforced windings handle continuous short-circuit-grade duty.

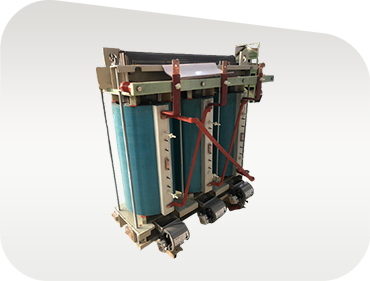

Oil-free, self-extinguishing cast resin units for hospitals, malls, metros, high-rise buildings and offshore-style indoor substations. Compliant with national and international dry-type standards.

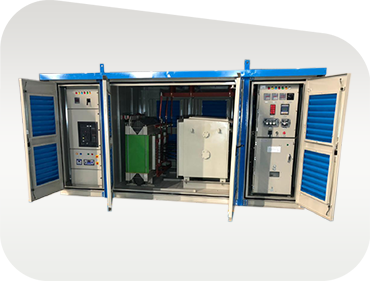

A complete plug-and-play substation: HV switchgear (VCB / LBS / RMU), transformer, LV distribution board and cable termination inside one weather-tight, vandal-resistant enclosure — ready for fast site commissioning.

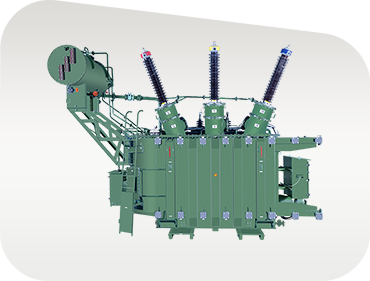

Step-up and step-down power transformers for generation, transmission tie-ins and captive industrial substations — with OLTC/off-circuit tap changers, ONAN/ONAF cooling and full protection accessory suites.
0+Sq. Ft. Built-Up Area
0+Satisfied Clients
0+Engineers & Technicians
0+Sq. Ft. Land Area From a shopping mall feeder to a steel plant furnace bus, load profiles differ. We size insulation, cooling and impedance for the duty you actually run.
BIS-approved distribution transformers for 11 kV and 33 kV feeders, with guaranteed loss levels and standard utility fittings.
Inverter duty step-up transformers and renewable energy substation packages engineered for harmonics and cyclic loading.
Furnace transformers for induction melting and heating lines, built for high secondary current and repetitive thermal shock.
Cast resin dry type units and compact substations for malls, hotels, hospitals, data rooms and residential townships.
Captive power step-down transformers with protection accessories for continuous-process plants and heavy motor loads.
Energy-efficient distribution transformers that reduce no-load losses in plants running long, multi-shift production cycles.
Rugged pole and plinth-mounted transformers designed for dusty, remote pumping installations with unstable supply.
Project-wise manufacturing with drawing approvals, witness testing, seaworthy packing and consolidated shipping documents.
Use this quick-reference matrix to shortlist the right family before you send drawings or a technical specification sheet.
| Product Family | Rating Range | Voltage Class | Cooling / Type | Reference Standard |
|---|---|---|---|---|
| Distribution Transformer | 16 – 3150 kVA | Up to 33 kV | ONAN, sealed / conservator | IS 1180, IS 2026 |
| Power Transformer | Up to 3500 kVA | Up to 33 kV | ONAN / ONAF | IEC 60076, IS 2026 |
| Cast Resin Dry Type | 100 – 2500 kVA | Up to 33 kV | AN / AF, F1 E2 C2 | IEC 60076-11 |
| Inverter Duty (Solar / Wind) | 250 – 3150 kVA | Up to 33 kV | ONAN, multi-winding | IS 2026, IEC 60076 |
| Furnace Transformer | Application specific | Up to 33 kV HV | ONAN / OFWF options | IEC 60076 series |
| Compact Sub Station (CSS) | 250 – 2500 kVA | 11 / 22 / 33 kV | Kiosk with VCB / RMU / LBS | IEC 62271-202 |
Documented incoming material inspection, in-process stage checks at winding and core-coil assembly, plus 100% routine testing before painting and dispatch clearance.
Ratio, polarity, vector group, winding resistance, insulation resistance, no-load loss, load loss, impedance voltage and separate-source withstand test records for every unit.
Site supervision, oil filtration, bushing and gasket replacement, tap-changer servicing and rewinding support — delivered by our own service engineers.
Working hours: Monday to Saturday, 09:00 – 18:00 IST. Export enquiries are handled by a dedicated pre-sales engineering desk.
National Highway No. 27, near Pipaliya Toll Plaza, Village Sadak Pipaliya, Tal. Gondal, Dist. Rajkot – 360311, Gujarat, India
"Diksha Parva", Shree Society Street No. 4, Opp. Tagore Vidhyalay, Nana Mava Road, Rajkot – 360005, Gujarat, India
We build oil-immersed and cast resin units from 16 kVA up to 3500 kVA in voltage classes up to 33 kV. This envelope covers distribution, power, furnace, inverter duty and compact substation applications. Ratings outside this range are reviewed case by case by our design department.
Oil-filled designs are manufactured and routine tested to IS 1180 (Level 1 / Level 2 energy efficiency), IS 2026 and IEC 60076. Cast resin dry type transformers follow IEC 60076-11 with F1, E2 and C2 class options. Compact substations are built around IEC 62271-202 principles.
Foil winding eliminates transposition joints, so axial short-circuit forces are distributed evenly along the coil instead of concentrating at crossovers. It also improves surface-to-volume ratio for heat dissipation, which reduces hot-spot temperature and extends insulation life — a real advantage in networks with frequent through faults.
Yes. Customer witness testing and third-party inspection agencies are welcome at our Rajkot test bay. We schedule the test date after drawing approval, share the test procedure in advance, and issue signed test reports plus guaranteed technical particulars with the dispatch dossier.
Standard distribution transformers are typically ready in 3 to 5 weeks after drawing approval. Custom power transformers, furnace transformers and compact substation packages generally need 6 to 10 weeks depending on rating, tap-changer type and accessory scope.
We regularly ship with seaworthy packing, nitrogen-filled or oil-filled transport options, and complete export documentation. After commissioning, our service desk supports remote diagnostics, spare fittings supply, oil filtration guidance and repair planning through local partners.
Utilities, EPC contractors, renewable developers and manufacturing groups who specify Synergy transformers on repeat orders.
