Pre-Engineered Plug & Play
Factory-wired, assembled, and 100% routine-tested prior to dispatch. Reduces field erection time by up to 80% compared to conventional masonry substations, enabling swift project commissioning.

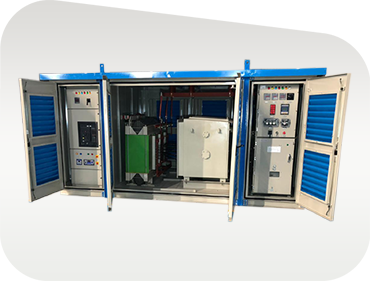

Factory-assembled, type-tested outdoor secondary substations up to 33 kV class for utilities, industrial complexes, and commercial infrastructure worldwide.
Proven structural integrity, climate-resilient insulation, and internal arc protection built into every unit shipped from our Rajkot manufacturing hub.
Factory-wired, assembled, and 100% routine-tested prior to dispatch. Reduces field erection time by up to 80% compared to conventional masonry substations, enabling swift project commissioning.
Designed for dense urban environments, commercial centers, and solar parks where land availability is restricted. Up to 70% footprint reduction compared to open-yard substations.
Constructed with heavy-gauge galvanized MS or aluminum housing coated with zinc-rich primer and polyurethane/epoxy topcoat (C4/C5 marine grade) for long service life under extreme ambient conditions.
Internal arc-tested compartments with mechanical safety interlocks, insulated busbars, pad-lockable handles, and segregated low-voltage control circuits prevent accidental contact.
Choice of low-loss foil-wound transformers (Level 1/Level 2 losses) paired with vacuum circuit breakers (VCB) or gas-insulated SF6 Ring Main Units (RMU) ensures minimal power interruption.
Tailored options for smart metering CT/PTs, Automatic Power Factor Correction (APFC), SCADA automation interfaces, and specialized RTD channel temperature monitoring.
Standard engineering parameters. Ratings, switchgear options, and enclosure specs can be customized according to consultant tender details.
| Parameter | Technical Specification |
|---|---|
| Applicable Standard | IEC 62271-202, IS 14786, IEC 60076, IS 2026 |
| Transformer Type | Cast Resin Dry Type (CRT / VPI) OR Hermetically Sealed / Conservator Oil-Immersed |
| Power Capacity Range | 250 kVA to 3150 kVA |
| Voltage Class (HV / LV) | 11 kV / 22 kV / 33 kV Primary – 415V / 433V / Custom Secondary |
| Tapping Range | Off-Circuit Tap Changer (OCTC) ±5% in 2.5% steps (OLTC optional) |
| High Voltage (HV) Protection | Vacuum Circuit Breaker (VCB) / SF6 Gas-Insulated RMU / Load Break Switch (LBS) with Shunt Trip & IDMT Relays |
| Low Voltage (LV) Protection | Air Circuit Breaker (ACB) / Moulded Case Circuit Breakers (MCCB) / LBS with Busbar Chamber |
| Enclosure Protection Class | IP54 / IP44 / IP45 outdoor kiosk with natural/forced louvered ventilation |
| Enclosure Surface Treatment | Zinc-rich primer with epoxy/polyurethane dual-coat finish (5+ years anti-rust warranty) |
| Monitoring & Safety Sensors | 8-Channel RTD Scanner with Fan Control, Alarm, Trip contacts, WTI, OTI, & Buchholz logic |
Complementary transformer families engineered, assembled, and tested within our 103,500+ sq. ft. Rajkot plant.

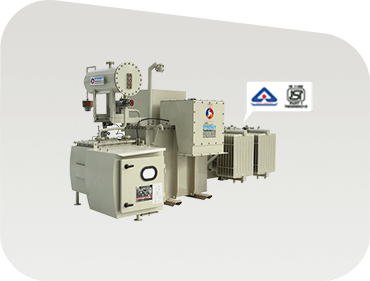

Foil-wound oil-immersed transformers compliant with BIS 1180 Level 1/2 and IEC 60076 standards for utility networks.

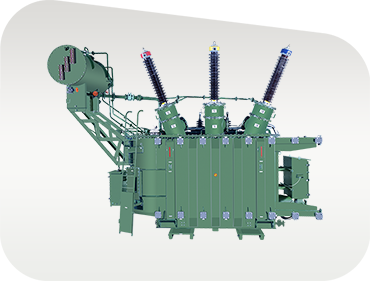

Substation step-up and step-down units up to 3500 kVA / 33 kV class with OLTC options for continuous industrial duty.

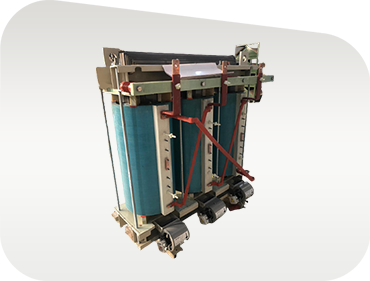

Flame-retardant, self-extinguishing F1/E2/C2 certified dry-type transformers for high-rise buildings and indoor installations.

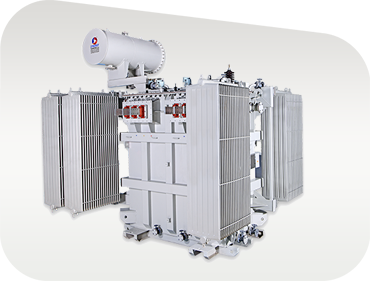

Multi-winding step-up transformers designed to handle harmonic loading and cyclic stress in renewable energy generation plants.

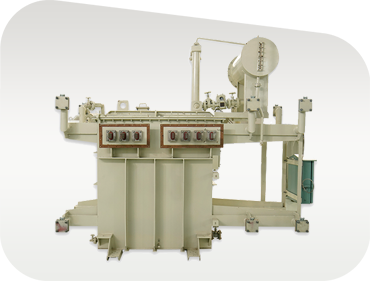

Heavy-duty induction melting and heating furnace transformers engineered to withstand extreme secondary currents and short circuits.
Send your single-line diagram (SLD), rating requirement, or tender specifications directly to our senior engineering desk. We provide factory quotation packages, technical drawings, and type-test dossiers.
