Precision-wound oil-immersed, cast resin dry-type, step-up/down, and pad-mounted transformers engineered for utilities, renewables, and heavy industrial facilities.

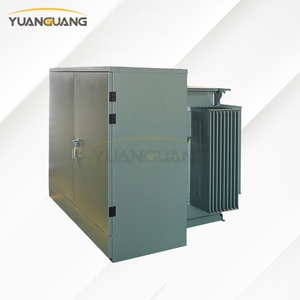

Heavy-duty outdoor compartmentalized pad-mounted power transformer engineered for renewable integration, commercial utility step-down, and industrial power distribution hubs.

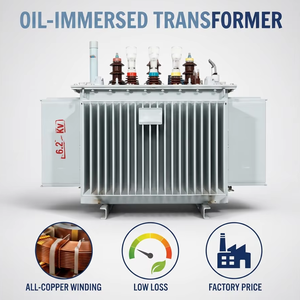

Energy-efficient oil-filled distribution transformer with low-loss CRGO steel core and foil windings, compliant with IS 1180 Level 1/2 and IEC 60076 specifications.

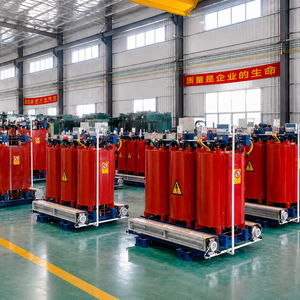

Fire-safe, self-extinguishing cast resin dry-type transformer designed for indoor substations, commercial complexes, data centers, and offshore facilities (F1, E2, C2 class rated).

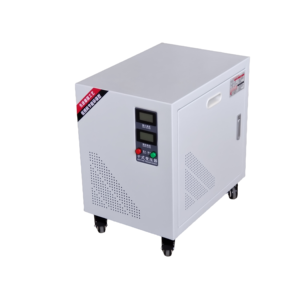

Precision multi-voltage industrial isolation transformer featuring continuous electrostatic shielding, dynamic voltage regulation, and robust short-circuit withstand capabilities.

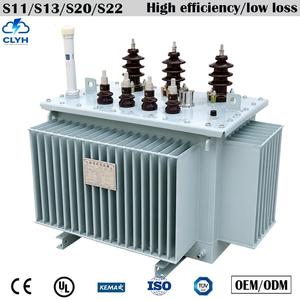

Premium 100% electrolyte-grade copper wound distribution transformer offering optimized hot-spot temperature rise, minimal load losses, and enhanced operating life for process industries.

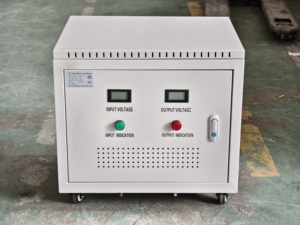

Versatile multi-tapped step-up and step-down dry transformer for machinery adaptation, international export equipment matching, and flexible industrial voltage control.

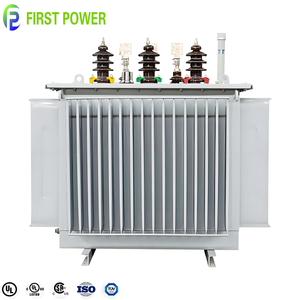

Medium-voltage 20kV class distribution transformer built for municipal grids, rural electrification schemes, and commercial feeder installations requiring high surge withstand capability.

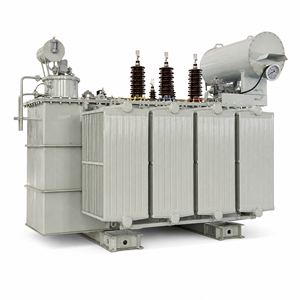

High-capacity power distribution transformer featuring advanced OLTC/Off-circuit tap changers, automated protection accessories, and full IEC/CE compliance for global EPC projects.
In modern industrial utility infrastructure, electrical power reliability hinges directly upon the design integrity, thermal efficiency, and mechanical resilience of transformers. As a premier KVA transformer manufacturer and export factory established in 2004 in Rajkot, Gujarat, India, Synergy Transformers Pvt. Ltd. delivers world-class power distribution solutions engineered to perform under extreme grid fluctuations and demanding environmental conditions.
Spanning over 103,500 sq. ft. of fully integrated built-up manufacturing facilities on a 131,500 sq. ft. industrial land area, our factory operates under a unified ISO quality control standard. Every phase of production—including high-permeability Cold Rolled Grain Oriented (CRGO) steel core cutting, precision foil and wire winding, automated core-coil assembly, tank fabrication, blast painting, vacuum oil impregnation, and rigorous routine testing—is executed strictly in-house under strict engineering supervision.
Information Gain Insight: Unlike conventional wire-wound units, our proprietary advanced Foil Winding Technology eliminates axial short-circuit forces, reduces hot-spot gradient temperatures by up to 15%, and dramatically prolongs insulation lifespan under frequent network grid fault conditions.
Whether you require energy-efficient distribution transformers compliant with IS 1180 (Level 1 & Level 2), robust power transformers conforming to IEC 60076 / IS 2026, fire-safe cast resin dry-type transformers, or multi-winding inverter duty transformers for solar and wind plants, our factory accommodates precise customization tailored to consultant specifications.
| Transformer Category | Rating Envelope | Voltage Classes | Cooling & Type | Compliance Standards |
|---|---|---|---|---|
| Distribution Transformers | 16 kVA – 3,150 kVA | 11kV, 22kV, 33kV | ONAN / Sealed & Conservator | IS 1180 Level 1/2, IS 2026, IEC 60076 |
| Power Transformers | 1,000 kVA – 10,000 kVA | Up to 34.5kV / 33kV | ONAN / ONAF (OLTC / OFF-TAP) | IEC 60076, IEEE C57, IS 2026 |
| Cast Resin Dry-Type (SCB) | 100 kVA – 2,500 kVA | 11kV, 22kV, 33kV | AN / AF (Class F1, E2, C2) | IEC 60076-11, IS 11171 |
| Solar / Wind Inverter Duty | 250 kVA – 7,500 kVA | Multi-LV Taps / 33kV | ONAN, Harmonic & K-Factor Rated | IEC 60076, IS 2026 |
| Furnace Duty Transformers | Application Tailored | Up to 33kV HV Bus | ONAN / OFWF High-Current LV | IEC 60076 Industrial Series |
The global power distribution landscape is undergoing a systemic transformation driven by grid decarbonization, rapid electrification of industrial processes, and the widespread integration of variable renewable energy (VRE) sources. Procurement teams, EPC contractors, and electrical consultants must align their capital expenditure strategies with key emerging industry shifts to avoid asset premature degradation and costly retrofit cycles.
Global procurement tenders have shifted from initial purchase price valuation to comprehensive TCO modeling. Buyers evaluate No-Load Losses ($/W) and Load Losses ($/W) over a 25-to-30-year lifecycle. High-grade CRGO steel cores (M0H, HiB) and foil windings reduce active power dissipation, delivering ROI within 24 to 36 months of continuous operation.
Environmental regulations are driving a clear transition from conventional mineral oil to biodegradable ester dielectric fluids. Ester fluids offer high flash points (>300°C, K-class fire safety rating), allowing substations to operate safely close to urban zones while eliminating soil contamination risks during accidental leaks.
Modern KVA transformer procurement increasingly mandates integrated IoT sensors for real-time thermal modeling, fiber-optic direct winding temperature monitoring (WTI), real-time Dissolved Gas Analysis (DGA), and oil moisture tracking, seamlessly interfacing with plant SCADA systems.
Urban space constraints and rapid industrial zone expansion are accelerating the demand for turn-key Compact Substations (CSS). Integrating Ring Main Units (RMU), Vacuum Circuit Breakers (VCB), and KVA transformers within a single IP-rated, factory-tested housing dramatically reduces civil engineering footprint and commissioning lead times.
As electrical grids experience greater harmonic stress from variable-frequency drives (VFDs), solar inverters, and EV charging hubs, transformer manufacturing must evolve beyond traditional wire-wound, step-down designs. Technical innovation in core geometry, conductor winding, and insulation engineering is critical to maintaining power quality.
Conventional round or rectangular wire windings suffer from high mechanical shear forces during short-circuit faults. Foil winding technology utilizes full-width aluminum or copper strips separated by tough Class F/H insulation films. This structure ensures zero axial displacement forces during fault current surges, uniform current distribution across the entire coil width, and enhanced heat dissipation surface area.
Magnetic core engineering determines a transformer's standing baseline losses. Our factory utilizes multi-stage CNC core cutting machines to produce step-lap mitred joints (45-degree angle cutting with precision overlap). This eliminates magnetic flux congestion at corner joints, reducing no-load losses by up to 18 to 22% and keeping operating acoustics well below standard decibel thresholds.
In renewable solar and energy storage installations, single multi-megawatt central inverters output multiple isolated LV feeds. Our specialized multi-winding inverter transformers feature up to 4 split LV windings on a single magnetic core assembly, with tailored electrostatic shielding to prevent high-frequency switching harmonics from penetrating the high-voltage utility grid.
Detailed engineering and procurement answers provided by our technical engineering team to assist utilities, consultants, and contractors in specifying the correct transformer ratings.
Our facility designs and manufactures both oil-immersed and cast resin dry-type transformers ranging from 16 kVA up to 10,000 kVA (10 MVA) in primary voltage classes up to 34.5 kV and 33 kV. Our core production covers distribution transformers, power transformers, pad-mounted units, solar/wind inverter duty step-up units, induction furnace duty units, and packaged compact substations.
All designs are rigorously engineered and routine tested in full compliance with Indian Standards (IS 1180 Level 1 / Level 2 energy efficiency ratings, IS 2026 parts 1 to 5) and International Electrotechnical Commission standards (IEC 60076 series). Cast resin dry-type units adhere strictly to IEC 60076-11 (F1 fire performance, E2 environmental, C2 climatic classes). American standard designs (IEEE C57 / ANSI) are also routinely manufactured for export projects.
Foil winding uses continuous sheet conductors across the entire length of the coil, completely eliminating the need for transposition joints. This dynamic structurally balances axial forces during downstream short-circuit faults, preventing mechanical coil tearing or collapsing. Furthermore, foil winding minimizes localized hot-spots, resulting in lower thermal aging of paper/film insulation and extended operational service life under full load.
Yes. We welcome customer witness testing as well as third-party inspection agencies (such as SGS, Bureau Veritas, TÜV, Intertek, or customer-appointed engineers) at our fully equipped Rajkot testing laboratory. Routine tests—including voltage ratio, vector group verification, winding resistance, insulation resistance, no-load loss, load loss, impedance voltage, and separate-source AC withstand testing—are conducted on 100% of manufactured units prior to dispatch clearance.
Standard IS 1180 / IEC distribution transformers (30 kVA to 2,500 kVA) typically require a manufacturing timeline of 3 to 5 weeks post drawing approval. Custom power transformers, high-capacity pad-mounted units, furnace transformers, and compact substations (CSS) with specialized tap changers (OLTC) generally take 6 to 10 weeks depending on custom accessory sourcing and technical specifications.
We supply complete export documentation, including detailed General Arrangement (GA) drawings, routine test certificates, guaranteed technical particulars (GTP), and customs declarations. Equipment is packed in seaworthy, heavy-duty wooden crates or containerized with anti-corrosion barrier wrapping. Depending on transformer size, units are shipped either fully oil-filled or dry-charged with positive pressure dry nitrogen gas.
