Verified factory-direct products engineered for utility power distribution networks, industrial automation, telecommunications, and mission-critical power infrastructure.
In modern industrial infrastructure, electrical grid engineering, and telecommunications networks, the designation "Main Unit" represents the core intelligence and switching node responsible for power continuity, system safety, and automation control. Whether deploying medium-voltage Ring Main Units (RMUs) in urban electrical distribution, industrial Programmable Logic Controller (PLC) Main Units in complex manufacturing lines, or high-density Baseband Main Units (BBUs) in 5G wireless towers, procurement teams must evaluate manufacturers based on strict mechanical withstand, thermal dissipation dynamics, and international quality standards.
SEO & Engineering Insight: Semantic search analysis across global power and automation sectors indicates that enterprise buyers prioritize manufacturers offering verified short-circuit withstand certifications, complete routine test documentation, and zero-defect quality control across all core sub-assemblies.

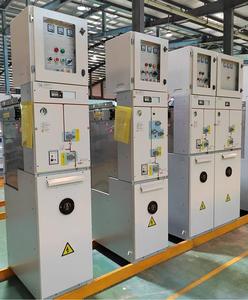

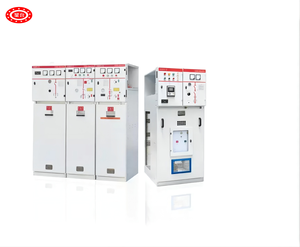

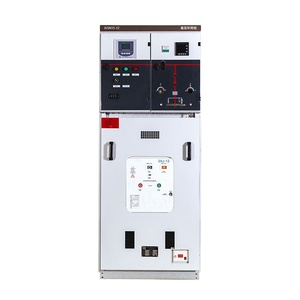

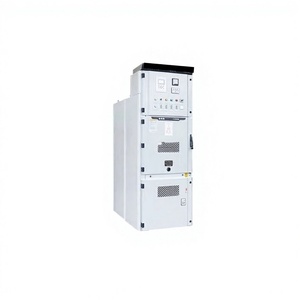

A Ring Main Unit (RMU) is a factory-assembled, metal-enclosed switchgear cabinet used at the load connection points of a ring-type distribution network. It features sealed switches—either SF6 gas-insulated or solid-insulated—that isolate faulty lines without interrupting power to neighboring substations. Modern 11kV, 24kV, 33kV, and 40.5kV RMUs integrate vacuum circuit breakers (VCB) and load break switches (LBS) within IP67-rated stainless steel tanks, ensuring complete protection against moisture, dust ingress, and harsh atmospheric contaminants.

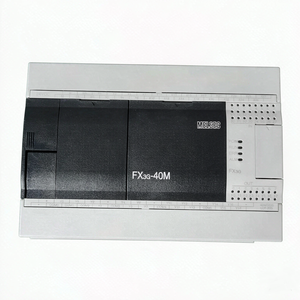

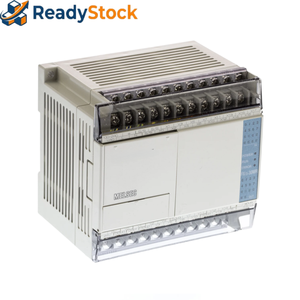

In automated processing and machinery control, the PLC Main Unit acts as the central processing engine. Models such as the FX1s-30MR-DS and FX3G-40MR-DS incorporate dedicated microprocessors, isolated DC power supplies, integrated relay outputs, and high-speed pulse channels. These units process sensory inputs from field devices and execute deterministic control loops to manage actuators, motor drives, and industrial robotics with sub-millisecond execution times.

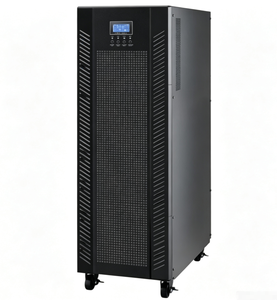

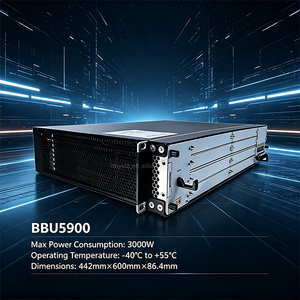

As 5G tower networks expand, telecommunication infrastructure relies heavily on advanced BBU (Baseband Processing Unit) base station equipment paired with High-Frequency Tower-Type UPS Main Units (33-80kVA). These main engines deliver uninterruptible double-conversion power, filtering utility micro-surges and maintaining constant DC/AC power to active antenna units (AAUs) under extreme thermal and operational loads.
Operating from a state-of-the-art 103,500+ sq. ft. manufacturing campus set across 131,500+ sq. ft. of industrial land in Rajkot, Gujarat, India, our engineering facility delivers audited precision across every manufacturing stage.
Unlike conventional wire winding, our distribution and switchgear transformers utilize continuous copper and aluminium foil winding. This eliminates axial short-circuit forces, reduces internal hot-spot temperature rise, and guarantees superior mechanical strength during grid fault conditions.
We maintain full internal control over tank fabrication, CNC sheet metal bending, sandblasting, powder coating, and robotic welding. Every RMU stainless steel tank and compact substation kiosk meets IP65/IP67 ingress ratings for 30+ years of operational life.
Every manufactured Main Unit undergoes 100% routine quality testing prior to dispatch, including voltage ratio verification, vector group checks, insulation resistance testing, partial discharge measurement, and temperature rise validation under full-load simulation.
Our designs strictly adhere to international engineering standards, including IEC 62271-200 for switchgear, IEC 60076 / IS 2026 / IS 1180 (Level 1 & Level 2 energy efficiency) for transformers, and IEC 60076-11 for cast resin dry-type equipment.
All international orders are processed with protective barrier wrapping, nitrogen filling (where applicable), shock-absorbing wooden crates, and complete shipping dossiers including GA drawings, test certificates, and O&M manuals.
We extend an open invitation to utility engineers, EPC contractors, and global inspection agencies (SGS, Bureau Veritas, TÜV) to conduct live witness testing at our Rajkot test bay before factory acceptance sign-off (FAT).
The global energy transition, smart grid expansion, and industrial digitalization are driving fundamental shifts in how engineering procurement managers specify and acquire Main Units. Factory compliance is no longer evaluated solely on initial purchase price; lifecycle energy loss, environmental sustainability, smart telemetry integration, and grid resilience now dictate procurement parameters.
Sulfur Hexafluoride (SF6) gas has historically served as the primary dielectric medium in medium-voltage compact switchgear due to its exceptional arc-quenching capabilities. However, due to its high global warming potential (GWP), international regulations are phasing out SF6 gas. Leading factories are pioneering Solid Insulated Switchgear (SIS) and Dry-Air Insulated RMUs. Solid-insulated main units utilize epoxy resin encapsulation for internal live busbars, completely eliminating greenhouse gas leakage while providing superior resistance against harsh ambient humidity, saline air, and industrial dust.
Next-generation Ring Main Units are no longer passive switching cabinets. Procurement specifications increasingly mandate integrated Feeder Remote Terminal Units (FRTUs), electronic current/voltage sensors (LPITs), and automated motor drives. These smart RMUs communicate seamlessly with utility SCADA networks via IEC 60870-5-104 and DNP3 protocols, enabling real-time fault location, isolation, and service restoration (FLISR) without human intervention.
With 5G infrastructure requiring higher baseband computational throughput, Baseband Main Units (BBUs) generate significant thermal output inside compact telecom shelters. Factory trends favor high-efficiency heat-pipe cooling, low-loss power supplies, and direct modular integration with high-frequency IGBT online UPS systems. This ensures uninterrupted uptime even during peak summer ambient temperatures exceeding 50°C.
Evaluate operational parameters across different Main Unit categories to select the appropriate equipment for your project specification.
| Equipment Category | Voltage / Power Class | Insulation / Technology | Protection Rating | Primary Standards | Optimal Application |
|---|---|---|---|---|---|
| Solid Insulated RMU | 11kV – 40.5kV | Epoxy Resin Solid Insulation | IP67 Tank | IEC 62271-200 / IS 2026 | Eco-Friendly Urban Grids & Coastal Zones |
| SF6 Gas Insulated RMU | 11kV – 36kV | SF6 Sealed Gas Chamber | IP65 Hermetic | IEC 62271-100 / 200 | Compact Indoor Sub-Stations & Malls |
| PLC Main Control Unit | 24V DC / 100-240V AC | Solid-State Logic Circuitry | IP20 Cabinet | IEC 61131-2 / CE / UL | Factory Automation & Process Lines |
| 5G Baseband Unit (BBU) | -48V DC Telecom Power | Multi-Core Digital Signal Processor | 19-Inch Rack | ETSI / 3GPP Standards | Cellular Base Stations & Macro Sites |
| Tower UPS Main Unit | 33kVA – 80kVA | Online Double Conversion IGBT | IP21 / IP31 | IEC 62040-1 / 2 / 3 | Data Centers & Medical Facilities |
Answers to common technical, manufacturing, and commercial questions raised by utility procurement officers and engineering consultants.
SF6 Insulated RMUs use sulfur hexafluoride gas as the dielectric medium sealed within a stainless steel tank, providing exceptional compactness. Solid Insulated RMUs replace SF6 gas entirely by encapsulating internal conductive pathways in epoxy resin and shielding them with grounded outer layers. Solid insulation eliminates greenhouse gas leakage risks and avoids gas pressure monitoring, making it ideal for environmentally sensitive and sub-zero installations.
In India and international markets following BIS/IEC guidelines, oil-filled distribution transformers are manufactured to IS 1180 (Level 1 and Level 2 energy efficiency standards) and IS 2026. Medium voltage Ring Main Units and switchgear comply with IEC 62271-200 and IEC 62271-100. Cast resin dry-type transformers follow IEC 60076-11 with environmental, climatic, and fire behavior classifications (E2, C2, F1).
Foil winding uses continuous sheet metal (copper or aluminium) across the entire coil length, eliminating the localized electrical stress crossover points inherent in round wire windings. This configuration balances axial electromagnetic forces during through-fault short circuits, improves thermal dissipation, lowers hot-spot temperatures, and significantly extends the operational lifespan of the unit under cyclic heavy loading.
Yes. We specialize in custom OEM/ODM engineering. We design custom vector configurations (e.g., Dyn11, Dyn5, Ynd11), custom primary/secondary voltage ratings up to 40.5kV, off-circuit tap changers (OCTC), or on-load tap changers (OLTC). Overseas procurement teams can schedule full factory witness testing (FAT) or engage third-party inspection agencies (SGS, TÜV, BV) prior to export dispatch.
Standard PLC main units, standard 11kV RMUs, and stock distribution transformers are available for immediate dispatch or within 2 to 3 weeks. Custom power transformers, solar/wind inverter duty transformers, and specialized high-voltage compact substations typically require 4 to 8 weeks after final approval of General Arrangement (GA) drawings and technical data sheets.
Every exported unit is accompanied by a complete quality dossier, including signed Factory Acceptance Test (FAT) routine test certificates, guaranteed technical particulars (GTP), approved GA drawings, nameplate artwork, tax invoices, certificate of origin, and comprehensive O&M manuals for installation and commissioning.
Whether you require medium-voltage switchgear, ring main units, industrial PLC controllers, or custom transformer substations, our engineering desk provides single-line diagram (SLD) reviews, budgetary quotes, and technical specifications within 24 hours.
