Precision-wound control, step-down, and isolation transformers custom-manufactured for German OEM machinery, panel builders, and high-reliability industrial power distribution.
Ultra-compact toroidal isolation transformer featuring pure copper windings and zero-stray-field magnetics. Engineered specifically for medical automation and high-density German CNC cabinets.

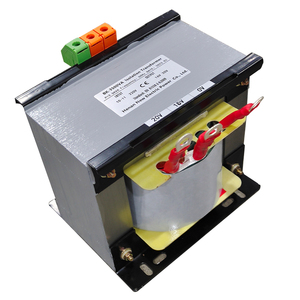

Heavy-duty machine tool control transformer optimized for German automation lines. Delivers high short-time thermal power ratings to withstand contactor energization inrush currents.

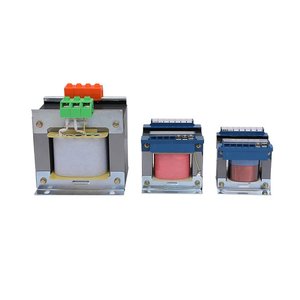

Single-phase double-wound isolation transformer engineered for continuous industrial duty. Provides clean 24V/36V/110V secondary control power for PLC systems and protective interlocks.
High-permeability silicon steel core construction delivering minimum no-load magnetic losses. Flame-retardant terminal block layout built for fast DIN rail or foot mounting in OEM control panels.

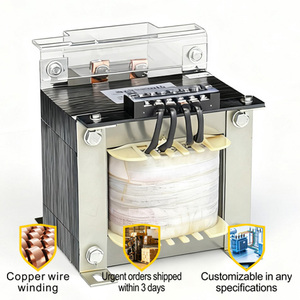

Custom multi-tap primary and secondary control transformer (5kVA - 10kVA) tailored for high-speed German packaging machinery and continuous thermoforming automation lines.

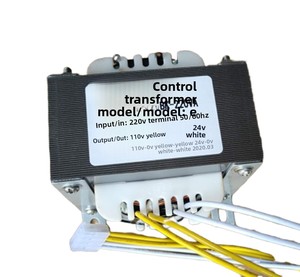

Versatile step-down control transformer supporting 220V/240V/380V/400V/440V step down to 12V/24V/36V/110V. Engineered for worldwide OEM machinery export from Germany.

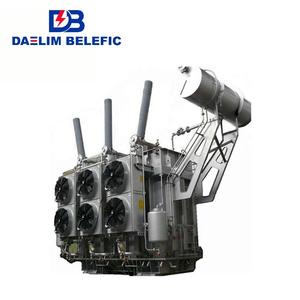

High-voltage utility and heavy industrial power transformer featuring integrated OLTC (On-Load Tap Changer) and advanced supervisory digital control loops for substation grid stability.

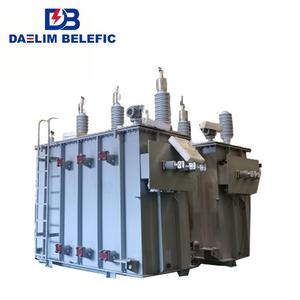

Heavy-duty power and auxiliary control transformer for chemical complexes, steel foundries, and regional utility interconnections requiring exceptional short-circuit withstand performance.
Control transformers are the foundational backbone of electrical safety and operational precision across Germany’s renowned industrial heartlands.
German machine tool builders in Baden-Württemberg and North Rhine-Westphalia demand strict voltage stability for high-precision CNC controllers, servo drives, and Siemens SINUMERIK drive buses.
Serving Tier-1 automotive plants in Stuttgart, Wolfsburg, and Munich. Control transformers step down 400V 3-phase plant power to galvanic isolation 24VDC power supply feeds and 110VAC safety loops.
Modern German panel builders (Schaltschrankbau) optimize every square centimeter. Our space-saving toroidal and ultra-compact EI core models minimize thermal heat dissipation inside IP54 cabinets.
Navigating the complex landscape of European and German electrical standards requires absolute manufacturing rigor, full material traceability, and continuous loss optimization.
German electrical safety regulations specify distinct criteria for Steuertransformatoren (Control Transformers) and Trenntransformatoren (Isolation Transformers). Our product lines are strictly audited to satisfy both standards:
Germany’s aggressive Energiewende and carbon neutrality mandates require low-loss components throughout the entire machine lifecycle:
Technical benchmarking data for electrical design engineers, control panel architects, and German procurement teams.
| Transformer Series | Power Rating Range | Standard Primary Voltages | Secondary Voltage Taps | Insulation Class | German / EU Standards |
|---|---|---|---|---|---|

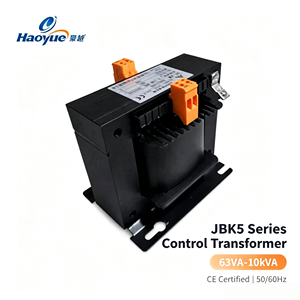

| JBK5 Machine Tool Series | 63 VA - 10 kVA | 230V / 400V / 440V / 500V | 24V, 36V, 110V, 230V | Class B / Class F | DIN EN 61558-2-2, VDE 0570, CE |
| BK EI-Core Series | 1 VA - 5 kVA | 220V / 380V / 400V | 12V, 24V, 36V, 110V | Class B (130°C) | IEC 61558, CE, ISO9001 |
| Toroidal Low-Loss Series | 15 VA - 3 kVA | 115V / 230V / 400V | Dual 12V, Dual 24V, 115V | Class F / Class H | DIN EN 61558-2-4, UL 5085 Ready |
| High-Duty Packaging Series | 5 kVA - 20 kVA | 400V / 415V / 480V (Multi-Tap) | 110V, 220V, 24VDC supply | Class F (155°C) | DIN EN 60204-1, CE, VDE |
| Industrial Utility Power Series | 50 kVA - 75 MVA | 11 kV / 33 kV / 110 kV / 220 kV | 400V / 6.6kV / 11kV | Class A / Cast Resin F1 | IEC 60076, IS 2026, ENEC |
From initial CAD electromagnetic modeling to automated precision winding and 100% routine dielectric testing, our manufacturing system delivers uncompromised quality.
Unlike assemblers who outsource critical components, we execute precision CRGO silicon steel cutting, automated foil winding, and fine-wire layer winding in our own 103,500+ sq. ft. plant.
German machine builders require custom voltage taps, specific mounting hole dimensions, and unique terminal block configurations. Our engineering team turns around 3D drawings in 24 hours.
Every single control transformer undergoing dispatch is tested in our high-voltage laboratory under strict Quality Assurance protocols, issuing complete test documentation with every lot.
Direct technical responses addressing common questions asked by German machine designers, panel builders, and procurement leads.
A control transformer (DIN EN 61558-2-2) is designed specifically to supply control circuits of machinery, prioritizing low voltage drop during high peak inrush currents caused by contactors and relays. A safety isolation transformer (DIN EN 61558-2-6) focuses on protective extra-low voltage output (below 50V AC) with reinforced galvanic isolation between primary and secondary windings to safeguard human operators against electric shock.
When contactor coils energize, they draw a short-time reactive inrush power up to 10 to 15 times their continuous holding power. Our engineering team calculates total cabinet inrush by summing the continuous holding VA of all energized loads plus the peak pick-up VA of the largest contactor. Our transformers feature low secondary resistance to restrict voltage drop under 5% during these peak millisecond events.
For German machine tool builders exporting to North America or Asia, we supply multi-tap primary windings configured for 200V / 220V / 230V / 380V / 400V / 440V / 480V / 520V. This enables OEMs to use a single standard control transformer model across all global destination markets simply by selecting the appropriate primary terminal tap.
We provide touch-proof, flame-retardant terminal blocks conforming to IP20 finger-safe protection standards, compatible with push-in and screw-clamp wire terminations (e.g., Phoenix Contact and WAGO compatibility). Mounting choices include standard DIN-rail clip channels for units up to 1000VA, as well as reinforced 4-point foot panels for heavy-duty transformers.
To protect sensitive control cabinets against continuous overloads or restricted airflow, our transformers can be fitted with embedded PTC thermistors, normally-closed (NC) bimetallic thermal switches (105°C to 155°C trip points), or self-resetting thermal fuses embedded directly inside the secondary wire turns.
Standard JBK5 and BK series control transformers are maintained in stock for rapid dispatch. Custom OEM designs with specialized voltage taps, custom enclosures, or specific mounting footprints require 7-10 days for prototype verification, followed by 3 to 5 weeks for full mass-production batch delivery via express air or seaworthy freight with full DDP tracking.
Submit your single-line electrical diagrams, primary/secondary voltage requirements, or target cabinet dimensions. Our engineering design team will deliver guaranteed technical particulars within 24 hours.
