High-precision voltage transformers, distribution units, and custom potential transformers engineered for Romanial grid specifications and harsh European environmental parameters.
Romania represents one of Eastern Europe’s most dynamic electrical power markets. Driven by nationwide grid modernization mandates under the National Recovery and Resilience Plan (PNRR) and EU Green Deal initiatives, Romania's National Power System (SEN) managed by Transmission System Operator Transelectrica is undergoing structural decarbonization and automation. Consequently, regional distribution system operators (DSOs) such as Electrica Furnizare, Distribuție Energie Oltenia, Delgaz Grid, and Rețele Electrice (formerly Enel Romania) require robust, highly accurate instrument transformers and distribution power step-down units.
A Potential Transformer (PT)—synonymous with a Voltage Transformer (VT)—serves as a fundamental element in high-voltage and medium-voltage substations. By stepping down primary distribution voltages (such as 11kV, 20kV, 35kV, and 110kV common across Romanian substations) to safe, standardized secondary levels (e.g., 100V or 110V), these units feed essential diagnostic data to tariff metering systems, numerical protective relays, and Supervisory Control and Data Acquisition (SCADA) terminals. Finding reliable Potential Transformer Suppliers & Exporters for Romania requires partnering with manufacturers capable of delivering equipment engineered specifically to withstand Eastern European environmental loads, seismic hazards, and stringent IEC/EN standard frameworks.
Romania’s distribution networks rely heavily on 20kV medium-voltage overhead lines and underground loops, requiring customized 22kV/0.4kV power units and matching 20kV/0.1kV potential transformers featuring enhanced BIL (Basic Impulse Level) margins.
Revenue protection and energy trading across Transelectrica interconnections demand potential transformers operating at high accuracy classes (0.2s, 0.2, and 0.5) to ensure minimum phase displacement under shifting loads.
Imported equipment entering Romania must conform to European Union EcoDesign Tier 2 loss standards. Our design practices minimize no-load hysteresis losses utilizing high-grade Cold Rolled Grain Oriented (CRGO) steel cores.
To simplify procurement for Romanian EPC contractors, utility engineers, and industrial project buyers, the table below details the performance boundaries and technical compliance ratings of our export-grade Potential Transformers and Power Transformer units.
| Equipment Category | Rated Voltage Range (Primary / Secondary) | Accuracy Class / Vector Group | Cooling & Insulation Method | Standard Compliance |
|---|---|---|---|---|

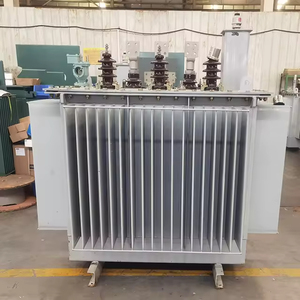

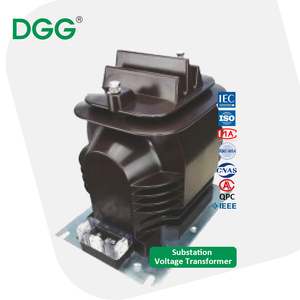

| Outdoor Oil-Immersed PT (DGG Series) | 6.6kV – 35kV / 100V, 110V, 100/√3V | 0.2, 0.5, 3P, 6P / Single Phase | Oil-immersed (ONAN), Hermetically Sealed | IEC 61869-3, IEC 60076, EN standards |

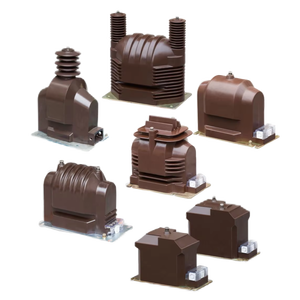

| Indoor Dry-Type Resin PT (JDZ10 / WAKAN) | 10kV – 35kV / 100V, 110V | 0.2S, 0.5, Class 1.0 | Vacuum Cast Resin (Epoxy), Dry Type (AN) | IEC 61869-3, DIN VDE 0414 |

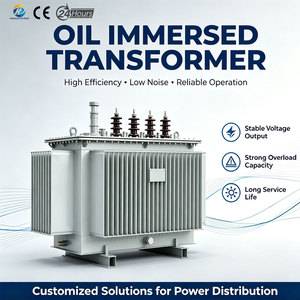

| Medium Voltage Distribution Transformers | 10kV, 20kV, 22kV / 0.4kV (400V) | Dyn11, Yyn0 (Level 1 / Level 2 Losses) | Mineral Oil / Bio-synthetic Synthetic Ester | EN 50588-1, IS 1180, IEC 60076 |
| Cast Resin Dry-Type Power Transformers | 6.3kV – 33kV / 400V - 690V | F1, E2, C2 Environmental Ratings | Air Natural (AN) / Air Force (AF) | IEC 60076-11, CE mark ready |
| Industrial Substation Auto Transformers | 110V, 220V, 380V, 415V, 1000V | High Efficiency Auto-Wound | Dry-Type Natural Convection | IEC 61558-2-13, CE Standard |
Each unit shipped to Romania is supplied with a comprehensive documentation folder including routine factory test reports, phase error and ratio error curves, guaranteed technical particulars (GTP), dimensioned GA drawings, and installation O&M guidelines.
Transformer requirements vary significantly across industrial clusters and geographical zones within Romania. Our manufacturing plant engineers bespoke coil configurations, insulation systems, and physical enclosures tailored to regional duty profiles:
The Dobrogea plateau (Constanța, Tulcea) hosts some of Europe's largest onshore wind farms. Our multi-winding inverter duty transformers and high-accuracy 35kV potential transformers withstand harmonic loads (K-factor ratings up to K-20) and rapid daily thermal cycling caused by fluctuating solar and wind production.
From metallurgical complexes in Galați and Slatina to petrochemical refineries in Ploiești, heavy industrial installations demand rugged potential transformers capable of enduring high mechanical vibration, transient overvoltages, and corrosive chemical atmospheres. Foil-wound construction prevents hot-spot thermal expansion.
Substations located in southern and eastern Romania must comply with strict European seismic acceleration codes due to deep Vrancea seismic zone movements. Our outdoor porcelain and epoxy resin VTs are vibration-tested to withstand horizontal shock forces exceeding 0.3g.

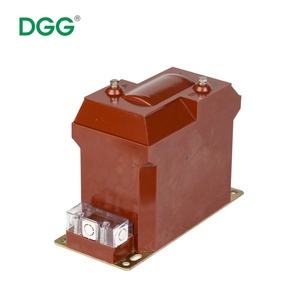

Densely populated metropolitan centers like Bucharest, Cluj-Napoca, Timișoara, and Iași rely on compact indoor switchgear substations. Our split-core (JDZ10) and epoxy resin dry-type VTs provide compact dimensions ideal for retrofit retrofitting into existing retro-style MV panels.
Over two decades of precision manufacturing in our modern 103,500+ sq. ft. plant enable us to provide international buyers with a distinct technical competitive advantage. Rather than relying on standard wire-wound geometries, our engineering team utilizes continuous foil winding technology and fully integrated in-house quality control.
By substituting traditional round copper wire with continuous strip foil in transformer secondary and primary winding assemblies, we eliminate transposition joints. This design spreads axial short-circuit forces uniformly across the structure, eliminating axial stress concentrations that cause premature dielectric fatigue during grid fault events.
Everything that influences transformer reliability—including precision CRGO steel core cutting, tank fabrication, shot-blasting, multi-coat anti-corrosive painting, and oil degasification—is executed inside our single certified manufacturing environment, guaranteeing absolute batch quality control.
Our accredited testing facility performs 100% routine testing on every export serial number. Tests include power frequency voltage withstand, partial discharge measurement, ratio and phase displacement accuracy verification, winding resistance measurement, and insulation impulse tests prior to dispatch clearance.
Common technical inquiries from utility procurement officers, EPC project engineers, and industrial electrical buyers sourcing Potential Transformers and distribution units for deployment in Romania.
Contact our pre-sales electrical engineering team today to receive detailed technical drawings, guaranteed particulars, and competitive export pricing tailored to your procurement specifications.
