Explore our certified range of step-down, isolation, and converter-duty transformers designed to meet SEC specifications, IEC 60076 standards, and desert thermal withstand requirements.

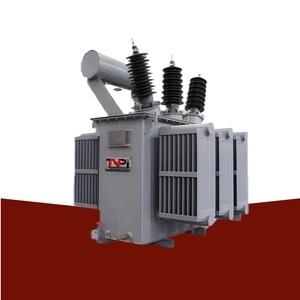

Heavy-duty outdoor substation transformer engineered with continuous electrolytic copper windings, low-loss CRGO steel core, and ONAN/ONAF radiator cooling built for 55°C Riyadh ambient heat.
Contact Us

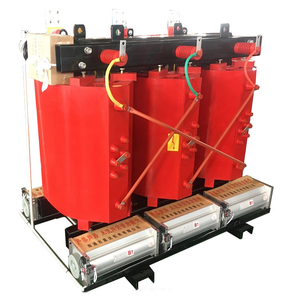

Flame-retardant F1/E2/C2 certified cast resin transformer optimized for Saudi 13.2kV networks, indoor commercial towers, hospital centers, and high-density industrial plants in Riyadh.
Contact Us

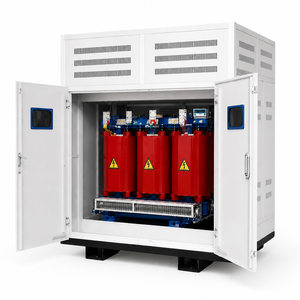

High-grade galvanic isolation unit designed to suppress electrical noise, harmonic distortion, and voltage spikes in sensitive industrial automation and rectifier power supply lines.
Contact Us

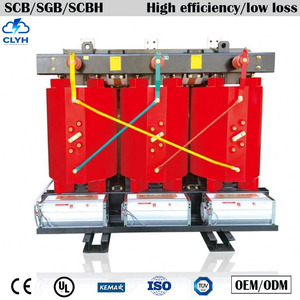

Energy-efficient SCB series step-down unit utilizing advanced foil winding geometry to deliver minimal no-load losses and maximum short-circuit strength under continuous operation.
Contact Us

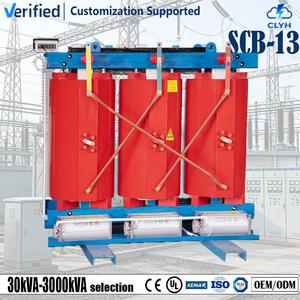

Class-H insulated dry-type transformer engineered specifically for DC power walls, hyperscale data centers, and heavy industrial automation networks requiring zero risk of oil leaks.
Contact Us

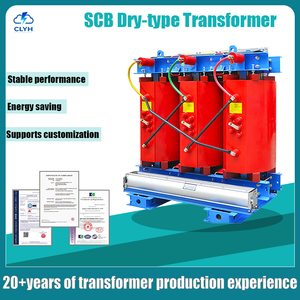

Compact IEC 60076 compliant transformer providing stable voltage stepping down for medium-voltage auxiliary circuits, control panels, and regional power conversion systems.
Contact Us

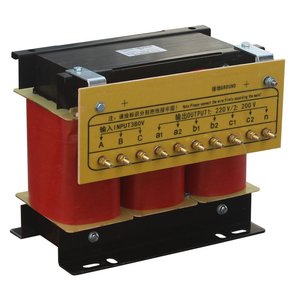

Precision-wound medical and industrial grade isolation transformer featuring electrostatic shielding to eliminate common-mode noise in critical healthcare and rectifying facilities.
Contact Us

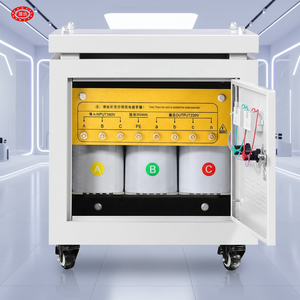

Versatile dual-voltage dry transformer suited for low-voltage power distribution, industrial machinery step-up/down, and localized DC rectifier input isolation applications.
Contact UsAnalyzing the electromagnetic, thermal, and harmonic demands of Riyadh's rapid industrialization under Saudi Vision 2030.
Industrial electrification in the Kingdom of Saudi Arabia—specifically across the expanding Riyadh 1st, 2nd, and 3rd Industrial Cities, as well as the Al-Kharj industrial zone—demands ultra-reliable direct current (DC) power supplies. At the core of every heavy electrolytic plant, aluminum smelter, steel mill DC arc furnace, chlor-alkali facility, and traction substation lies a critical electromagnetic component: the Rectifier Transformer.
Unlike standard AC power distribution transformers that operate with smooth sinusoidal current waveforms, rectifier transformers feed solid-state diode or thyristor rectifiers. This subjects the transformer windings, magnetic core, and insulation system to severe harmonic current pollution (THD), severe DC magnetizing bias, rapid thermal expansion, and repeated electrodynamic short-circuit stresses. When operating under Riyadh's punishing summer environment—where ambient temperatures frequently cross 50°C to 55°C and sandstorms (Haboobs) coat cooling radiators in abrasive dust—standard off-the-shelf transformers fail prematurely due to hot-spot degradation and insulation breakdown.
Information Gain Insight: A rectifier transformer installed in Riyadh must be engineered with a minimum thermal margin reserve of 15% to 20% above nominal rating, utilizing multi-pulse phase shifting (12-pulse, 24-pulse, or 48-pulse configurations) to cancel low-order harmonics (5th, 7th, 11th, 13th) directly at the secondary winding level before they contaminate the Saudi Electricity Company (SEC) grid network.
As premier specialized manufacturers and international exporters, Synergy Transformers Pvt. Ltd. engineers custom high-current rectifier transformers and cast resin dry-type distribution units tailored to the exact specifications of EPC contractors, industrial plant operators, and municipal infrastructure developers serving Riyadh and the broader GCC region.
How customized winding topologies and thermal engineering prevent dielectric stress and transformer hot-spots.
To reduce total harmonic current distortion (THD) without relying entirely on bulky external filter banks, our rectifier transformers employ extended delta, star-delta, or zig-zag secondary windings. By introducing specific electrical phase shifts (e.g., ±15° for 12-pulse or ±7.5° for 24-pulse systems), low-order harmonic currents cancel out vectorially within the primary winding, ensuring compliance with SEC IEEE 519 harmonic limits.
Conventional round or rectangular wire windings suffer from localized eddy current hot-spots when carrying high-frequency harmonic currents. Synergy utilizes continuous copper and aluminum Foil Winding Technology for secondary low-voltage, high-current windings. Foil winding completely eliminates axial short-circuit forces, evenly distributes current density, and drastically lowers hot-spot temperature rise under peak Saudi summer loads.
Non-linear rectifier loads generate eddy current losses that increase proportionally to the square of the harmonic frequency. Our engineers design rectifier duty transformers with high K-Factor ratings (K-13, K-20, up to K-30). We incorporate Class H (180°C) or Class C (220°C) DuPont Nomex insulation materials and high-flashpoint synthetic ester fluids or epoxy resin casting to guarantee a 30-year design life in ambient temperatures exceeding 55°C.
Saudi Arabia's Vision 2030 is driving unprecedented capital investment into domestic manufacturing, renewable energy integration, mega-infrastructure, and digital infrastructure. Below are the primary localized applications where specialized rectifier and distribution transformers are deployed across Riyadh:
| Industrial Sector / Project | Key Rectifier / Transformer Application | Technical Challenge Addressed | Recommended Transformer Configuration |
|---|---|---|---|
| Metal Smelting & Galvanizing (Al-Kharj / Modon) | Heavy DC supply for electroplating, zinc extraction, aluminum anodizing & steel melting furnaces. | Extremely high secondary current (up to 50,000A DC) with severe thermal cycling and short-circuit shocks. | Oil-Immersed ONAN/ONAF or Water-Cooled OFWF Rectifier Transformer with OLTC & saturable reactors. |
| Green Hydrogen & Chlor-Alkali (Central Region) | Water electrolysis direct current power supply for hydrogen generation & chemical synthesis. | Continuous 24/7 full-load operation under harmonic-rich thyristor control waveforms. | 24-Pulse double-bridge oil-filled or cast resin dry-type converter transformer with K-20 insulation rating. |
| Riyadh Metro & Electric Traction | Step-down traction substations feeding 750V / 1500V DC third-rail and overhead catenary systems. | Rapid cyclic load swings, strict indoor fire safety codes, zero halogen smoke emissions. | Cast Resin Dry-Type 12-Pulse Traction Rectifier Transformer certified to IEC 60076-11 (F1 fire class). |
| Hyperscale Data Centers (Riyadh Hub) | Solid-state DC power distribution walls, UPS isolation, and MV utility grid step-down lines. | Strict uptime requirements, non-linear server power supply harmonics, space-constrained indoor vaults. | Low-loss SCB series Epoxy Resin Cast Dry-Type Transformer with electrostatic copper shielding. |
| Solar PV Grid Tie Integration (Sudair / Solar Parks) | Multi-winding inverter duty transformers stepping up solar inverter output to SEC 13.8kV / 33kV lines. | High desert solar radiation, daily thermal cycling, solar inverter high-frequency PWM switching harmonics. | Hermetically sealed oil-immersed solar inverter duty transformer with multi-LV split windings. |
Navigating SEC requirements, SASO standards, and desert-environmental durability parameters.
Driven by strict Civil Defense fire regulations in Riyadh's urban centers and high-rise commercial complexes, project consultants are increasingly specifying Cast Resin Dry-Type Transformers over conventional oil-filled units. Dry-type units eliminate oil-leakage hazards, require no blast walls or oil containment pits, and feature self-extinguishing epoxy resin structures.
Riyadh experiences solar radiation ambient temperatures reaching up to 55°C in summer months, with metal enclosure surface temperatures topping 70°C. Standard transformers rated for 40°C ambient will experience rapid insulation thermal breakdown. Local procurement teams specify transformers designed for a maximum winding temperature rise of 45°C or 50°C above 55°C ambient to prevent de-rating penalties.
Dust accumulation and silica sand ingress act as thermal insulators on radiator fins, causing severe overheating. Export transformers shipped to Saudi Arabia feature IP56 / IP65 weather-tight enclosures, heavy-duty silica gel / dust-filtering breathers, and high-durability C5-M poly-urethane multi-coat paint systems to withstand sand erosion and harsh atmospheric environments.
Proven track record of engineering, full in-house fabrication, and rigorous quality assurance since 2004.
Established in 2004 in Rajkot, Gujarat, India, Synergy Transformers Pvt. Ltd. has grown into a premier global manufacturing facility spanning over 103,500 square feet of built-up production area. Built on strict ISO quality management systems, our facility integrates every critical phase of transformer manufacturing under one roof:
We process prime-grade Cold Rolled Grain Oriented (CRGO) silicon steel from accredited global mills, utilizing CNC step-lap miter cutting to minimize no-load hysteresis losses. Our foundry-grade tank fabrication shop produces shot-blasted, pressure-tested, leak-free radiator tanks with C5-M protective coatings.
Equipped with modern automated vertical and horizontal winding machines, our plant produces both high-conductivity electrolytic copper and aluminum windings. Foil winding technology guarantees superior mechanical strength under severe external short-circuit events.
100% of transformers undergo rigorous in-house routine testing prior to dispatch: winding resistance, voltage ratio, vector group verification, insulation resistance, separate-source AC voltage withstand, induced overvoltage, and full no-load / load loss measurement.
With more than 3,000 successfully commissioned installations across the Middle East, Africa, South Asia, and domestic utility networks, Synergy provides end-to-end export support—including tailored drawing approvals (GA drawings), guaranteed technical particulars (GTP), third-party witness inspection support (SGS, Bureau Veritas, Intertek), seaworthy crate packaging, and dedicated after-sales engineering assistance.
Clear answers to key technical, regulatory, and logistics queries for exporting transformers to Riyadh.
Our transformers are specifically custom-engineered for extreme desert ambient conditions. Standard designs assume a 40°C ambient temperature, but for Riyadh installations, we re-calculate thermal dissipation margins for a 50°C to 55°C ambient baseline. We utilize lower winding temperature rise limits (45°C/50°C rise), high-grade Class H Nomex insulation, optimized radiator surface areas, and forced-air (ONAF/AF) cooling fans where necessary.
Depending on your rectifier circuit topology (6-pulse, 12-pulse, 24-pulse, or 48-pulse), we design secondary phase-shifting windings (Star/Delta/Extended Delta/Zig-Zag). Furthermore, we calculate stray load losses and eddy current losses using finite element analysis (FEA), employing foil windings and transposed conductors to prevent localized hot-spots caused by harmonic currents.
Yes. Our power and distribution transformers are engineered in full compliance with international IEC 60076, IEC 60146 (for semiconductor converters), IEEE C57.18.10 standards, and align with SEC technical specifications (such as 13.2kV and 33kV primary voltage ratings common in KSA grid networks).
Absolutly. We welcome customer witness testing and third-party inspection (TPI) agencies such as SGS, Bureau Veritas, TUV, or Intertek at our Rajkot manufacturing facility. Complete routine test reports, type test records, and material mill certificates are provided in the dispatch dossier.
Standard cast resin dry-type and distribution transformers are typically completed within 3 to 5 weeks following GA drawing approval. Customized high-capacity rectifier transformers or specialized substation packages generally require 6 to 9 weeks. Shipments from Mundra or Kandla ports in Gujarat reach Saudi ports (Riyadh Dry Port via Dammam or Jeddah Islamic Port) in approximately 10 to 14 days transit time.
Cast resin dry-type transformers are fire-safe, non-explosive, and self-extinguishing (F1 rating). They eliminate the environmental risk of oil leaks and require minimal maintenance, making them the preferred choice for commercial towers, indoor substations, metro stations, and data centers in urban Riyadh.
Need custom technical proposals, single-line diagram (SLD) reviews, or competitive export pricing for your Saudi Arabia project? Contact our senior engineering desk today.
