Engineered with high-grade copper/foil windings, low-loss CRGO silicon steel cores, and climate-hardened insulation systems rated for continuous duty across the Middle East.
Tailored electrical specs to match the extreme ambient conditions, coastal salinity, and industrial demands of the Sultanate of Oman.
Deploying heavy-duty single-phase control transformers and unit substations into Petroleum Development Oman (PDO) concession areas and Duqm Refinery corridors. Built with C5-M marine anti-corrosion exterior coatings, sealed terminal boxes, and high surge withstand to handle continuous hazardous-area duty cycles.
Industrial control transformers engineered for seawater reverse osmosis (SWRO) facilities in Muscat, Sohar, and Salalah. Featuring double-vacuum pressure impregnated (VPI) Class H copper coils to prevent moisture ingress, salt-spray degradation, and severe dielectric breakdown in humid maritime climates.
Custom control and inverter-duty transformers optimized for Oman’s large-scale solar projects (such as Ibri and Manah Solar IPPs). Specifically designed to manage high harmonic content (THD), daily solar thermal cycling, and continuous 55°C ambient shade temperatures without dielectric degradation.
Purchasing control transformers and electrical power infrastructure for Oman requires strict adherence to environmental thermal limits, harmonic suppression standards, and grid compliance specifications dictated by the Oman Electricity Transmission Company (OETC) and major industrial authorities. Control transformers act as the core stabilizing unit within automated motor control centers (MCC), PLC control cabinets, and switchgear assemblies. In a region where ambient summer temperatures routinely cross 50°C to 55°C in interior desert basins like Fahud and Nimr, standardized off-the-shelf transformers suffer severe thermal derating, premature insulation hardening, and catastrophic winding flashovers.
Information Gain Insight: Standard IEC 61558 ratings assume a maximum ambient temperature of 40°C. For installation in Oman, transformers must be calculated with a custom thermal rise allowance (K-factor), utilizing Class H (180°C) or Class R (220°C) Nomex insulation systems to prevent internal hot-spot breakdown under full rated continuous loads.
Our manufacturing plant leverages advanced continuous copper and aluminum foil winding techniques. Unlike traditional round wire winding, foil winding eliminates axial short-circuit forces by distributing electrical stress evenly across the entire longitudinal surface of the transformer coil. When high motor starting currents or utility grid surges occur, foil-wound control transformers display zero mechanical turn displacement, drastically extending service lifetime up to 25–30 years under aggressive industrial operation.
As part of Oman Vision 2040, the Sultanate is rapidly expanding its non-oil manufacturing sector, green hydrogen infrastructure, and regional logistics hubs within the Sohar Freezone, Salalah Free Zone, and Special Economic Zone at Duqm (SEZAD). This transition demands reliable power supply equipment with high In-Country Value (ICV) compatibility, strict routine testing, and verifiable factory acceptance test (FAT) documentation.
Modern industrial buyers in Muscat and Sohar prioritize suppliers who offer integrated control solutions—combining step-down control transformers (e.g., 415V/240V to 24V/110V) with built-in isolation protection, surge arresters, and IP65 weatherproof enclosures. By consolidating design, core cutting, foil winding, tank fabrication, and impulse testing inside a single 103,500+ sq. ft. ISO-certified facility, we guarantee complete supply chain traceability for every transformer shipped to Oman ports.
Refer to the engineering parameters below to match your electrical control panel requirements for Omani industrial installations:
| Transformer Model / Series | Power Rating Range | Primary Voltage (HV) | Secondary Voltage (LV) | Cooling / Insulation | Oman Application Fit |
|---|---|---|---|---|---|
| BK Series Isolation | 1 VA – 500 VA | 220V / 380V / 415V | 12V / 24V / 36V / 110V | Air Natural (AN) / Class F/H | Machine Tool CNC Panels & Relay Automation |
| JBK5 Industrial Control | 63 VA – 10 kVA | 220V – 480V Dual Tap | 24V / 48V / 110V / 220V | Dry VPI / Class H (180°C) | Factory MCC Cabinets & Packaging Lines |
| Single-Phase Toroidal | 50 VA – 3000 VA | 110V / 220V / 240V | Custom Dual Outputs | Toroidal Core / Ultra-Quiet | Precision Medical & Telecom Control Units |
| Cast Resin Dry-Type | 100 kVA – 2500 kVA | 11 kV / 33 kV Class | 415V / 240V 3-Phase | AF / AN (F1, E2, C2) | Indoor Substations, Commercial Malls & Towers |

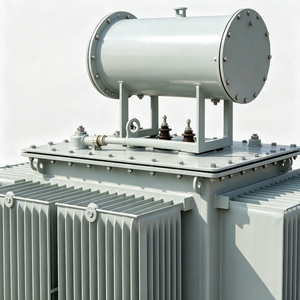

| Oil-Immersed Substation | 500 kVA – 75 MVA | 11kV / 33kV / 66kV / 220kV | 415V – 11kV Step-Down | ONAN / ONAF Hermetic/Conservator | OETC Grid Tie-ins, PDO Oilfields & Utilities |
From raw CRGO core sourcing to final witness testing in our high-voltage laboratory, every unit is built for non-stop performance.
Over 20 years of operational experience since 2004. In-house core cutting, automated foil winding machines, tank fabrication, shot-blasting, and powder coating bays ensure total quality oversight under ISO 9001, ISO 14001, and ISO 45001 management systems.
Every single control transformer undergoes rigorous routine testing before export clearance, including turns ratio, vector group verification, winding resistance, insulation resistance (Megger), dielectric withstand, and open/short-circuit loss measurements.
Full support for export logistics arriving directly at Sohar Port, Sultan Qaboos Port (Muscat), and Port of Salalah. Shipped in vacuum-sealed moisture-proof barrier foil and reinforced wooden crates with complete O&M documentation and FAT certificates.
Key technical considerations, standard specifications, and logistics details for importing control transformers into Oman.
We build our Middle East export units using high thermal Class H (180°C) or Class R insulation, utilizing DuPont Nomex materials and high-flashpoint dielectric fluids or VPI resins. Coils are thermally derated at the design phase to ensure full output capacity even under 55°C ambient shade conditions in desert regions.
Our control transformers comply with IEC 61558-1 / IEC 61558-2-2 standards. Power and distribution transformers conform to IEC 60076, IS 2026, and IS 1180 energy efficiency benchmarks, making them fully acceptable for EPC contractors working on OETC, Nama Group, and PDO infrastructure projects.
Yes. We specialize in custom OEM transformer designs. We can engineer multi-tap primaries (e.g., 415V/380V/240V/220V) and step-down secondaries (e.g., 110V isolation, 48V, 24V, or 12V safety control voltages) matching your specific electrical panel configuration.
We welcome third-party inspection agencies such as Bureau Veritas, SGS, TÜV, or Intertek at our factory test bays. Complete Factory Acceptance Test (FAT) dossiers, calibrated test bench reports, and raw material certificates (CRGO core and copper mill test reports) are provided with every order.
Standard industrial control transformers (BK, JBK5 series) are available with fast-track production in 2 to 3 weeks. Custom power transformers and large dry-type units take approximately 4 to 8 weeks depending on technical complexity and accessory requirements. Maritime transit from India to Sohar or Muscat takes approximately 4 to 7 days.
Send us your single-line diagrams (SLD), voltage specifications, or bill of quantities (BOQ). Our pre-sales engineering team will return a comprehensive technical proposal and competitive quotation within 24 hours.
